Moteur Scorpion HKIV-4020-1320KV Agrandir l'image

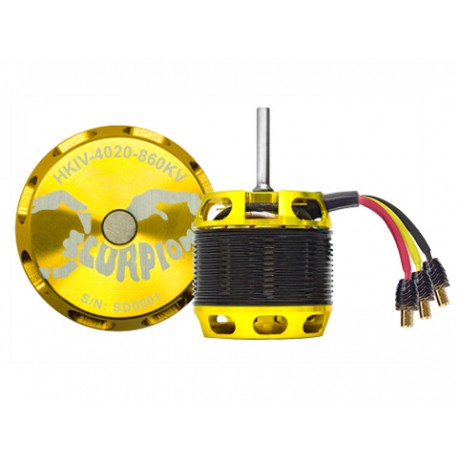

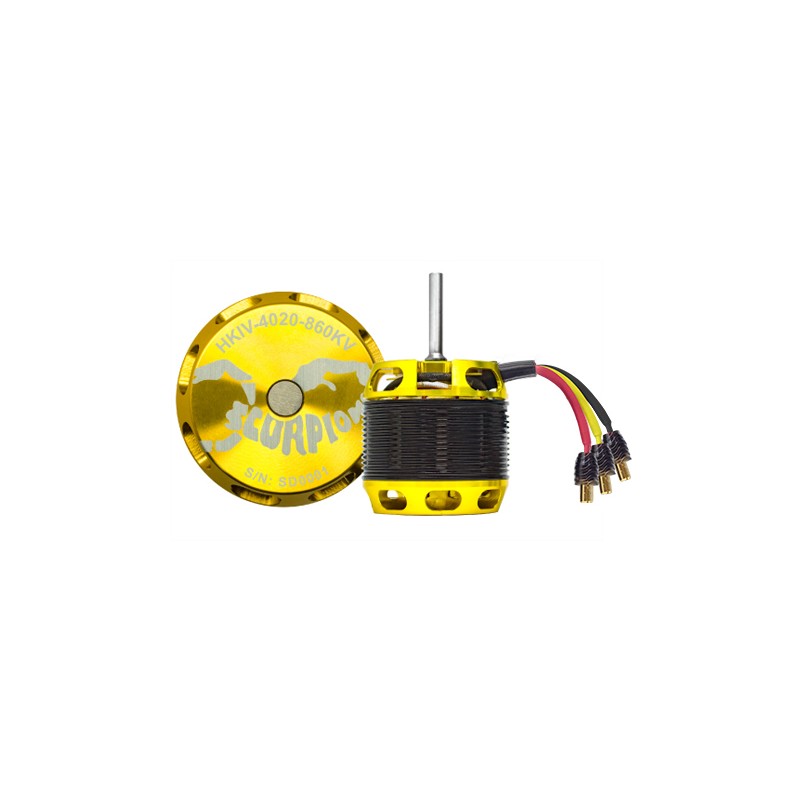

Moteur Scorpion HKIV-4020-860KV

HKIV-4020-860KV Motor

Neuf

Scorpion HKIV-4020-860KV

Plus de détails

225,00 € TTC

En savoir plus

Specifications

Stator Diameter 40 mm(1.57 in)
Stator Thickness 20 mm(0.79 in)
No. of Stator Arms 12
Magnet Poles 10
Motor Wind 5+5 Turn Delta
Motor Wire 1-Strand 1.4mm
Motor Kv 860KV RPM/Volt
No-Load Current (IO/10v) 2.67 Amps
Motor Resistance (RM) 0.012 Ohms
Max Continuous Current 78 Amps
Max Continuous Power 1732 Watts
Weight 310 Grams (10.94 oz)
Outside Diameter 49.50 mm (1.95 in)
Shaft Diameter 4.98 mm (0.20 in)
Body Length 49.2 mm (1.94 in)
Overall Shaft Length 80 mm (3.15 in)
Max Lipo Cell 6s
Peak Continuous Current 90 Amps (5 seconds)
Peak Continuous Power 1998 Watts (5 seconds)
Motor Timing 5deg
Drive Frequency 8kHz

Included in the Box

1 x Scorpion HKIV-4020-860KV Motor
3 x Female Connectors
3 x Connector Cover
4 x M3 Screws
