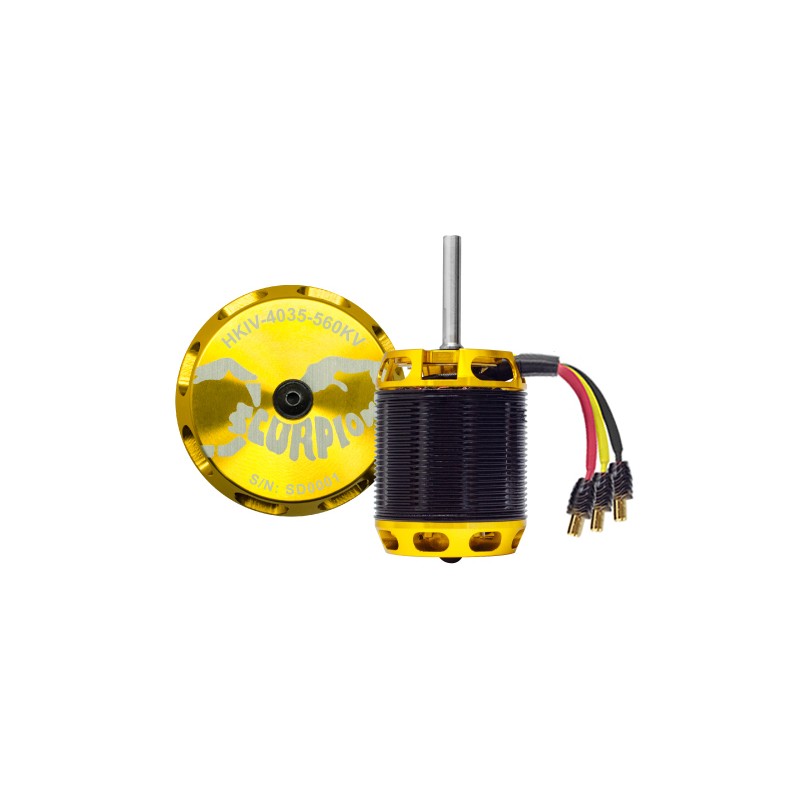

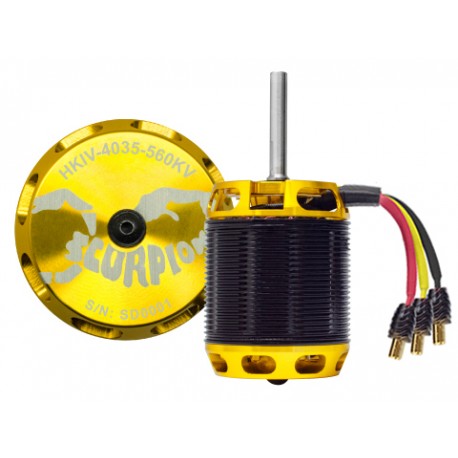

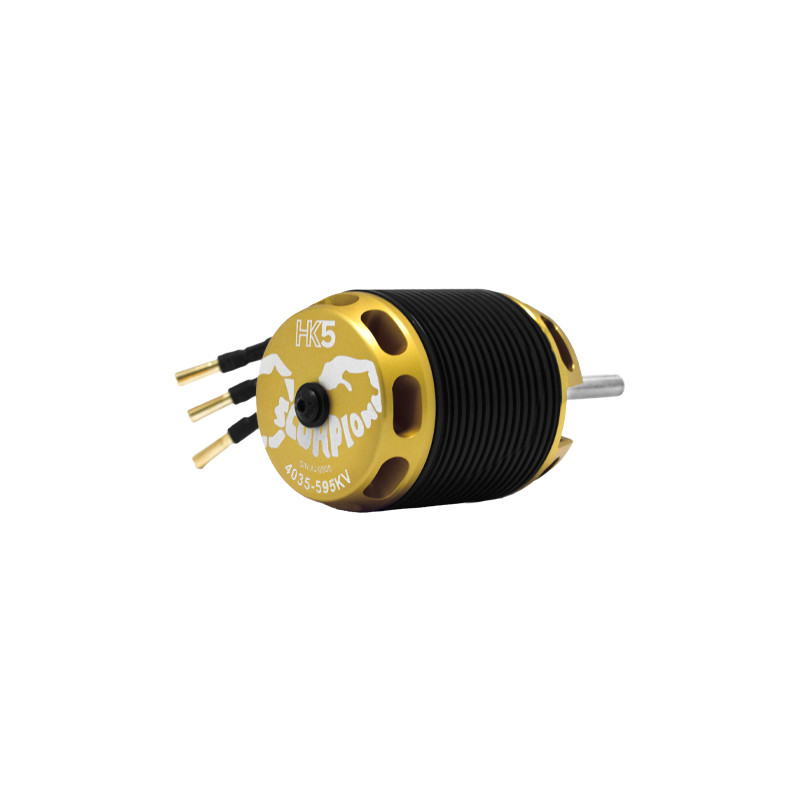

Moteur Scorpion HK5-4035-595Kv

Référence HK5-4035-595Kv

État : Neuf

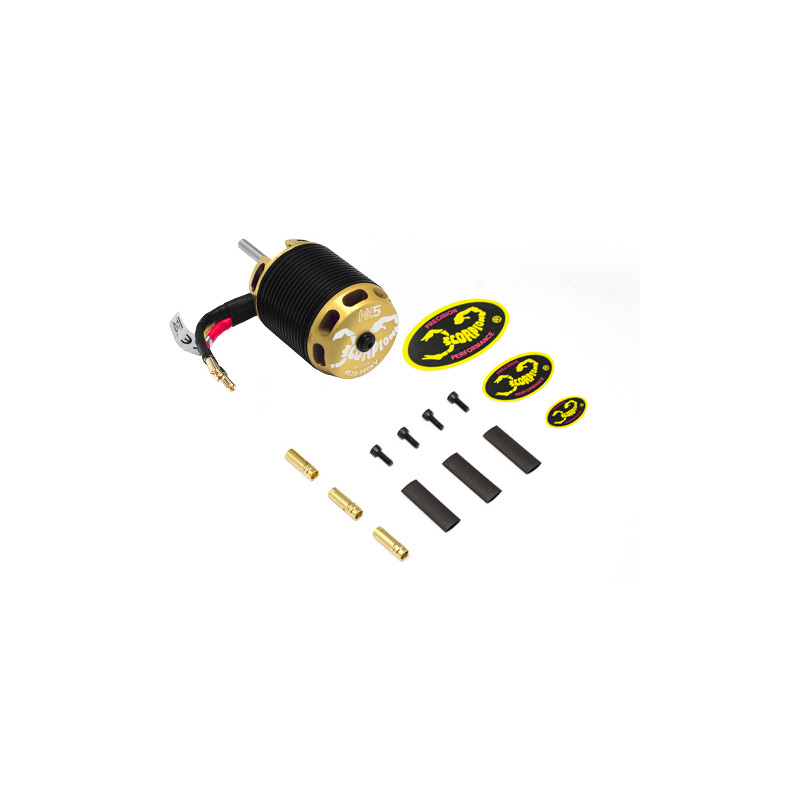

1 x Scorpion HK5-4035-595KV Motor
3 x Female Connectors
3 x Connector Cover
4 x M4 Screws

Ce produit n'est plus en stock

Specifications

Motor Kv	595KV RPM/Volt
Weight	482.0 Grams ( 17.00oz)

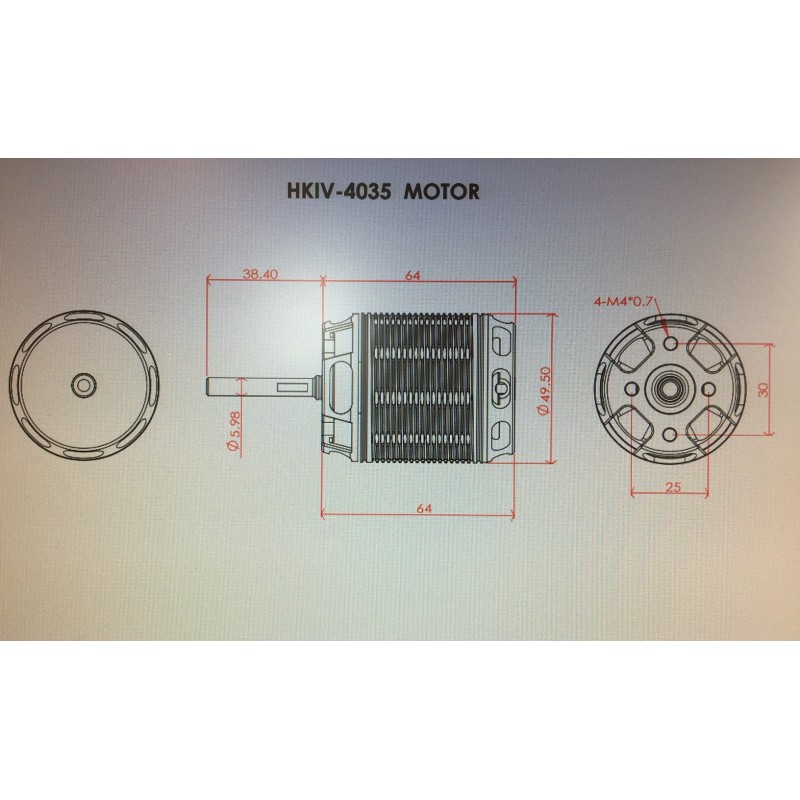

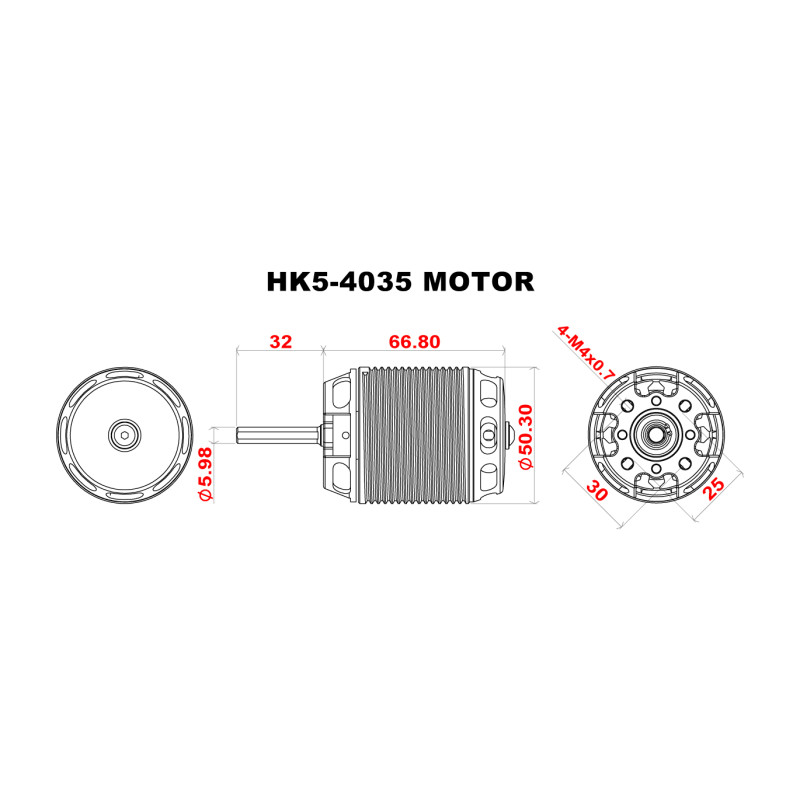

Motor Body Dimensions	49.5mm x 67.1mm (1.95" x 2.64")

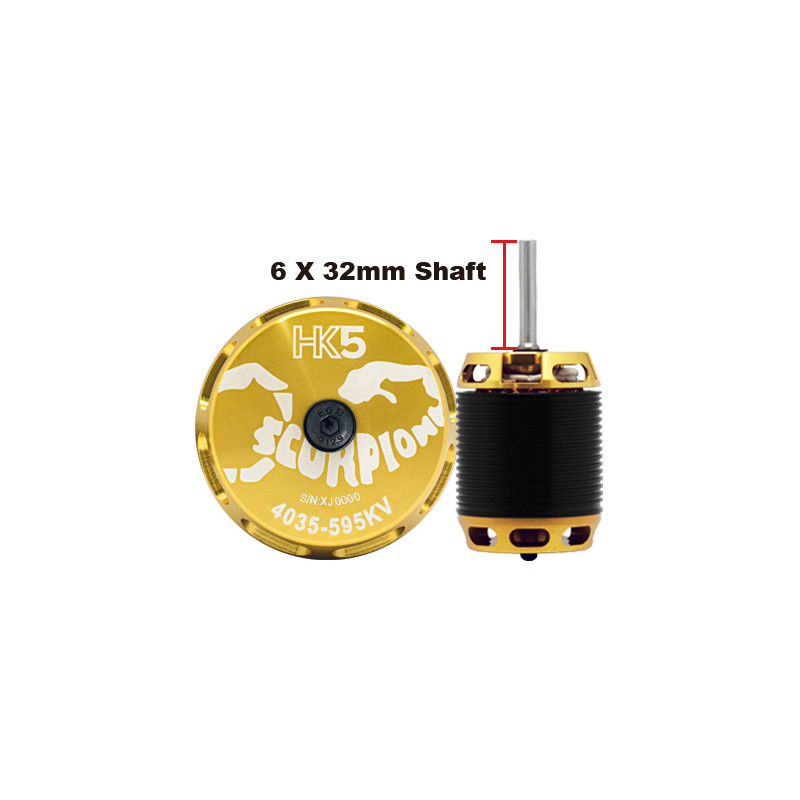

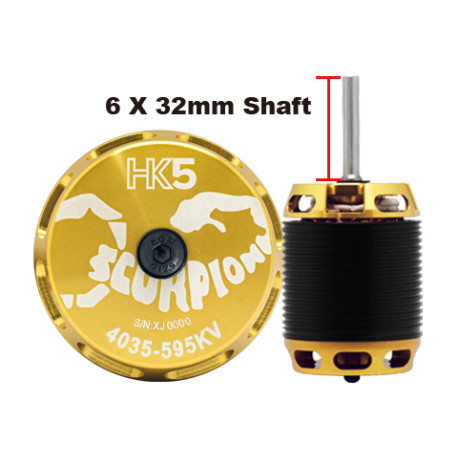

External Shaft Dimensions	5.98mm x 38mm (0.235" x 1.50")
Continuous Current	110 Amps
Continuous Power	4884 Watts
Peak Current	185A (2 seconds)
Peak Power	8200 Watts (2 seconds)
Max Lipo Cell*	12s
Stator Diameter	40 mm (1.57 in)
Stator Thickness	35 mm (1.18 in)
No. of Stator Arms	12
No. of Stator Poles	10
Motor Wind	4T Delta
Motor Wire	1.56mm
*Higher Cell Count possible with appropriate gear ratio adjustment
