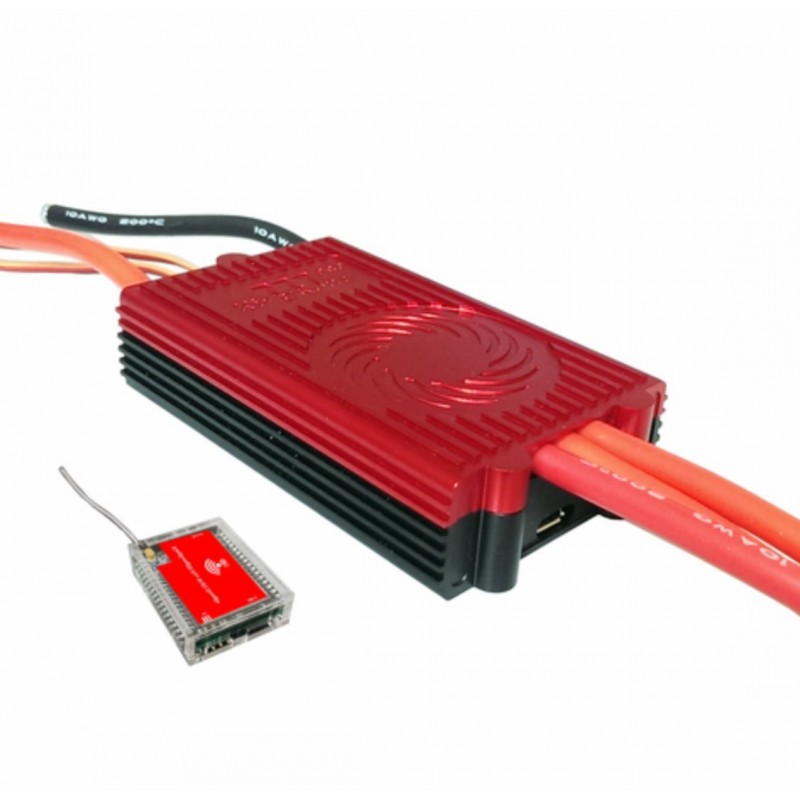

HIFEI KIII Pro 200A ESC

Input Voltage:  4S-14S Lipo Cells

Continuous Current (Surge): 200A (250A)

BEC: no(OPTO)

Programmability:  HiFei USB Linker,HiFei Software V5.0, HiFei WiFi dongle (sold separately)

Data Logger: yes

Dimension:  100mmx57mmx23mm (3.93''x2.24''x0.90'')

Weight: 198g

• 32-bit Microprocessor with up to 80MHz frequency.

• 4-14S Lipo support

• Active FreeWheeling optional

• Motor PWM frequency 8-32K Hz

• Throttle resolution up to 1uS

• Throttle signal refresh rate up to 1K Hz

• Integrated RPM sensor to simplize the wiring for extenal Governor

• Optimized the Governor Algorithm to ensure the head speed more stable

• Fully CNC aluminium housing with built-in high quality bearing cooling fan to efficient the heat dissipation

• Built-In data Logger (logging parameters: battery voltage/current/throttle output/temperature/motor RPM)

• Reserve the telemetry interface easy to transfer the realtime data to the third part device

• Max 240000 RPM with 2 pole motor ( Heli Mode: Max 160000 electric RPM )

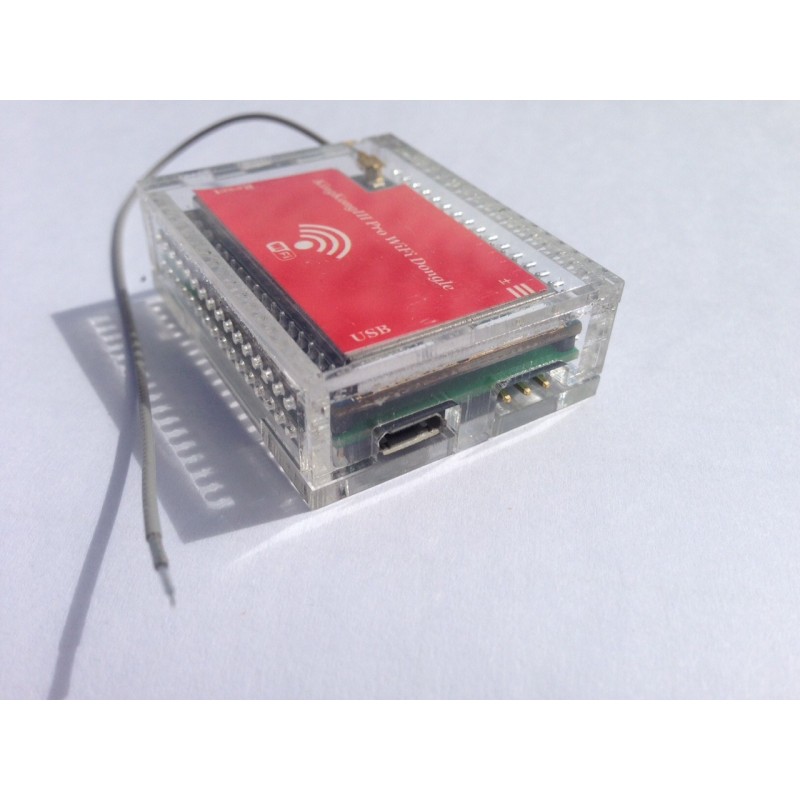

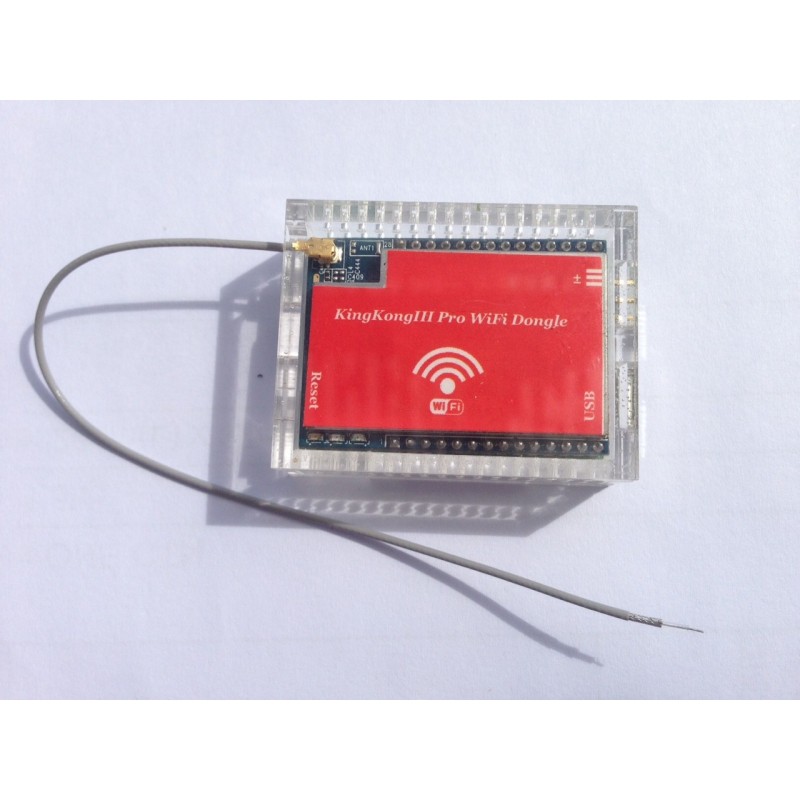

• Program setting by your smartphone through an exteranl wifi dongle (available for KingKong III Pro)

• Real log data (battery voltage, current, esc temperature,motor rpm ) can be telemetered

        on your smartphone (available for KingKong III Pro )
